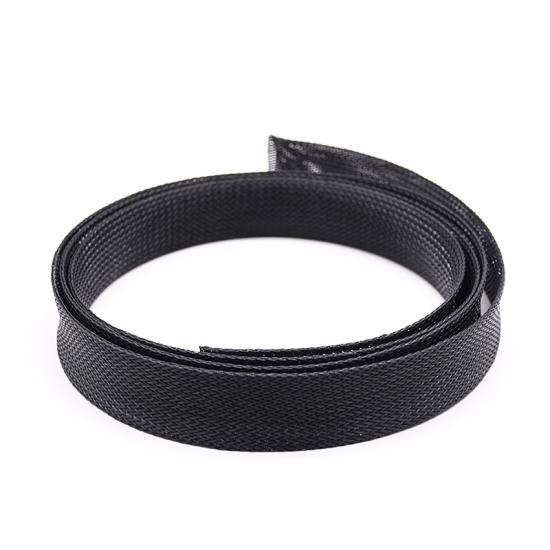

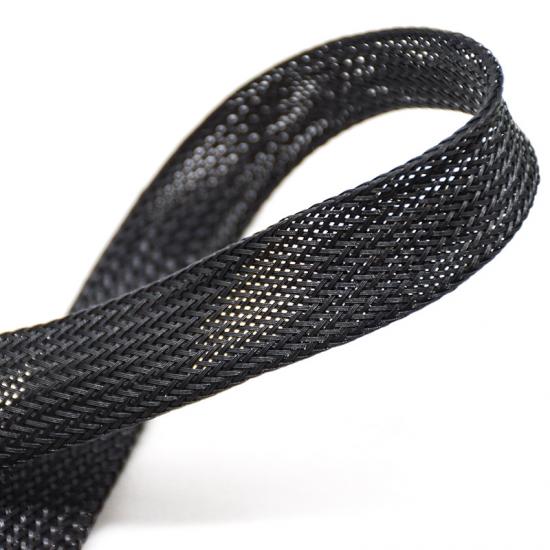

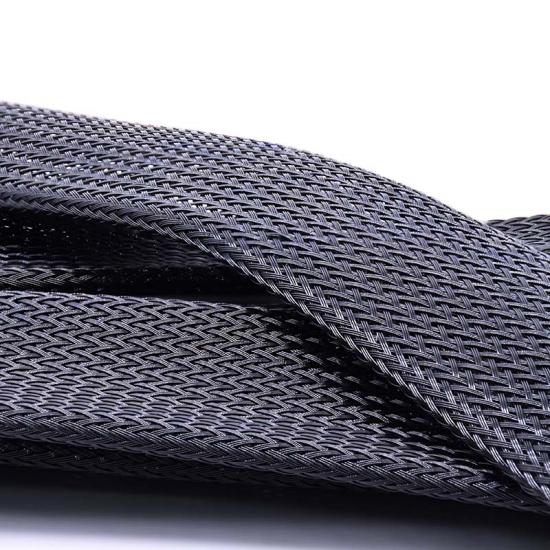

Light Weight Standard Nylon Expandable Braided Sleeving
Nylon expandable braided sleeving made of 0.12" nylon 66 monofilament,widly use for automotive industry cable protection, it can increase cable and hose life up to 300%.
Compare with PET braided sleeve,nylon sleeving with more excellent abrasion resistance performance, higher heat resistance and chemical resistance level.
Smooth,soft nylon fibers and tight construction also reduce abrasion damage caused by hoses and harnesses rubbing against the inside wall of the nylon braided sleeve.
Certifications
What's Special about Nylon Braided Sleeving?
1.Made of nylon66 monofilament
2.Flame retardant
3.Extremely lightweight
4.Highly abrasion resistance
5.Keeps it's flexibility under a wide range of temperatures
6.Resists gasoline, chemicals & cleaning Solvents
7.Expands up to 150% of initial diameter
8.UV resistance
Specification
| Part No | Flat Width(W) | Expanded Range(mm) |
Packing Length
(m/spool)
|
||
| Inch | mm | Min.(I) | Max.(O) | ||
| BRS-PA66-003-BK | 1/8” | 3 | 1 | 6 | 1000 |
| BRS-PA66-006-BK | 1/4” | 6 | 3 | 9 | 500 |
| BRS-PA66-008-BK | 5/ 16” | 8 | 5 | 12 | 350 |
| BRS-PA66-010-BK | 3/8” | 10 | 7 | 17 | 350 |
| BRS-PA66-012-BK | 1/2” | 12 | 8 | 20 | 300 |
| BRS-PA66-016-BK | 5/8” | 16 | 10 | 27 | 250 |
| BRS-PA66-020-BK | 3/4” | 20 | 14 | 30 | 200 |
| BRS-PA66-025-BK | 1” | 25 | 18 | 33 | 200 |
| BRS-PA66-032-BK | 1-1/4” | 32 | 20 | 50 | 150 |
| BRS-PA66-038-BK | 1-1/2” | 38 | 30 | 60 | 100 |
| BRS-PA66-045-BK | 1-3/4” | 45 | 35 | 75 | 100 |
| BRS-PA66-050-BK | 2” | 50 | 40 | 80 | 100 |
| BRS-PA66-064-BK | 2-1/2” | 64 | 45 | 105 | 100 |
| BRS-PA66-076-BK | 3” | 76 | 64 | 120 | 100 |
Application
MJ Nylon wire sleeve widely use for military,automobile,aerospace cable and hose protection.
