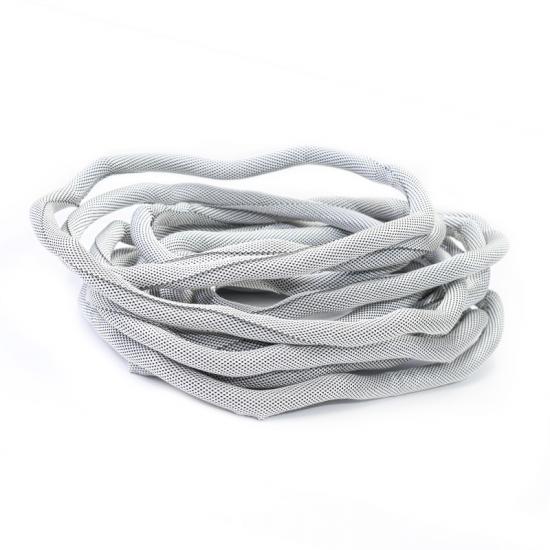

Self-Wrapping Anti-Abrasion Sleeving
Self-rolling design

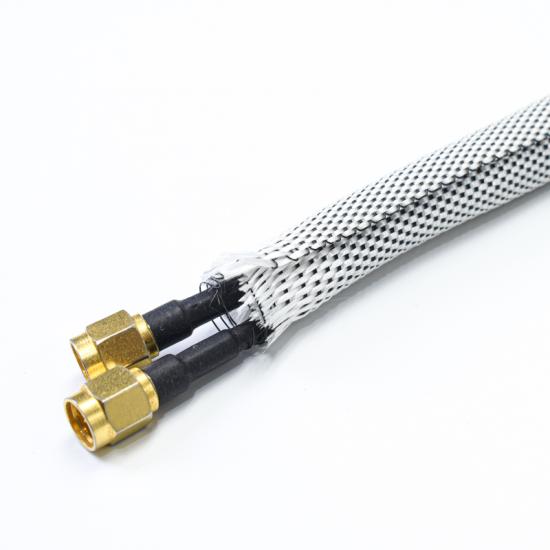

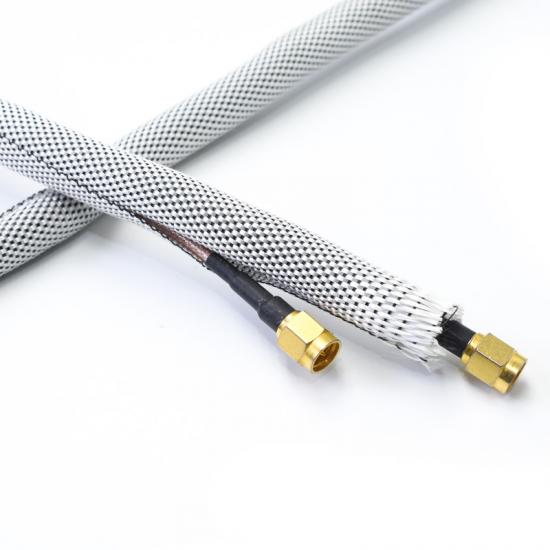

No need for tape or cable ties to fix, the sleeve can automatically curl and wrap the wire harness, fit tightly and easily adjust, suitable for complex wiring environments.
Save installation time, especially suitable for batch operations or operations in small spaces.
Excellent anti-tear performance

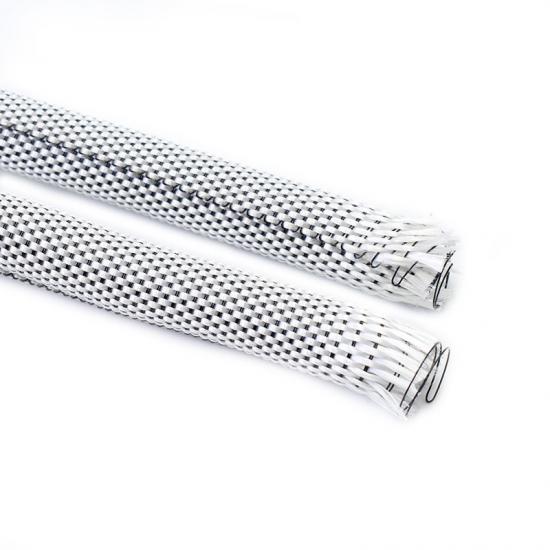

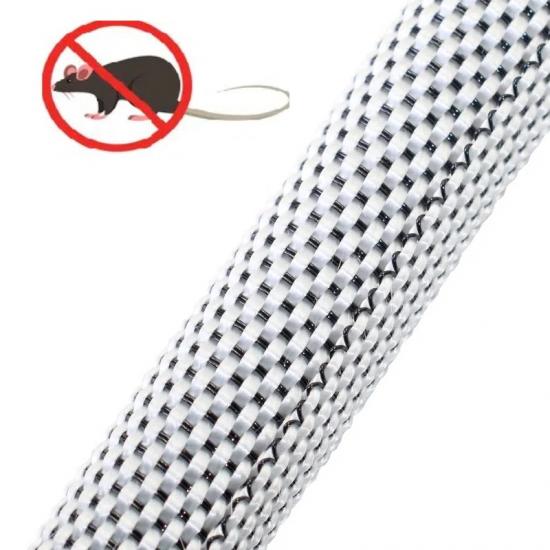

The use of glass fiber and polyester fiber has excellent resistance to rodents (such as mice) and protects the cable from damage.
The surface texture can further increase the wear resistance, resist friction and scratches from sharp objects.
Environmental adaptability
Oil-resistant, acid-resistant, alkali-resistant, and UV-resistant, suitable for harsh environments such as industry, automobiles, ships, and outdoor equipment.
A wide operating temperature range (usually -40℃ to +150℃) meets the needs of different climatic conditions.
Flexibility and compatibility
A variety of diameter specifications are available to adapt to different thicknesses of wire harnesses or pipes.
Can be combined with other protective products (such as corrugated pipes and braided pipes) to form multi-layer protection.
Certifications
Specification
Part No
Мин.
Макс
STW-PGF-005-WH/BK-RR
5
29
0,65
4
6
200
STW-PGF-008-WH/BK-RR
8
46
0,65
6
9
100
STW-PGF-010-WH/BK-RR
10
50
0,65
8
11
80
STW-PGF-013-WH/BK-RR
13
65
0,65
12
14
50
STW-PGF-016-WH/BK-RR
16
75
0,65
15
17
100
STW-PGF-019-WH/BK-RR
19
97
0,65
17
20
100
STW-PGF-025-WH/BK-RR
25
125
0,65
23
26
50
STW-PGF-029-WH/BK-RR
29
145
0,65
27
31
50
STW-PGF-032-WH/BK-RR
32
164
0,65
29
34
50
STW-PGF-038-WH/BK-RR
38
184
0,65
37
40
50
STW-PGF-050-WH/BK-RR
50
245
0,65
48
52
25
Приложение
Автомобильная промышленность: защита жгута проводов моторного отсека от износа при высоких температурах и поедания животными.
Промышленное оборудование: Защита кабелей заводского оборудования для снижения повреждений, вызванных вибрацией и трением.
Железнодорожный транспорт: конструкция кабелей в нижней части поездов, защищающая от грызунов.
Энергетическая сфера: Долгосрочная защита открытых кабелей в ветроэнергетическом и фотоэлектрическом оборудовании
.
